Parameter

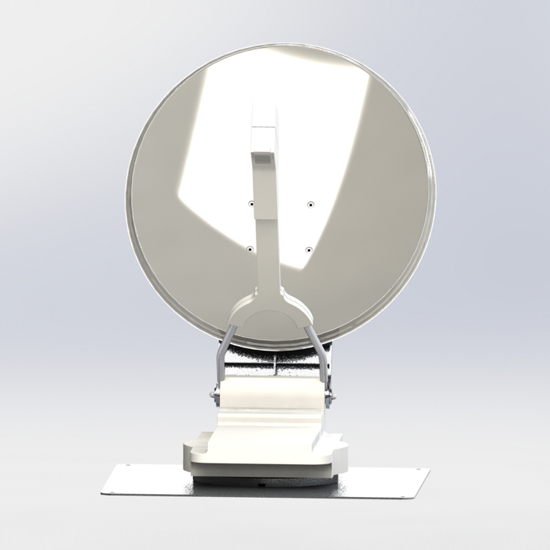

Model Name60/80cm foldable,automatic
Reflector
Model60CM foldable automatic80CM foldable automatic
Reflector Offset Angle(deg)17.8°
Antenna Travel
Azimuth± 360° continuous
Elevation0 - 90° of reflector boresight
Polarization± 90°
Antenna Drive Rate
Azimuth1.5°/sec
Elevation1.5°/sec
Polarization2°/sec
Tracking Loss (operational)2dB peak (Ku-band Rx)
WindsOperational72 kph Gusting to 96 kph
Survival128 kph any position / 145 kph stowed

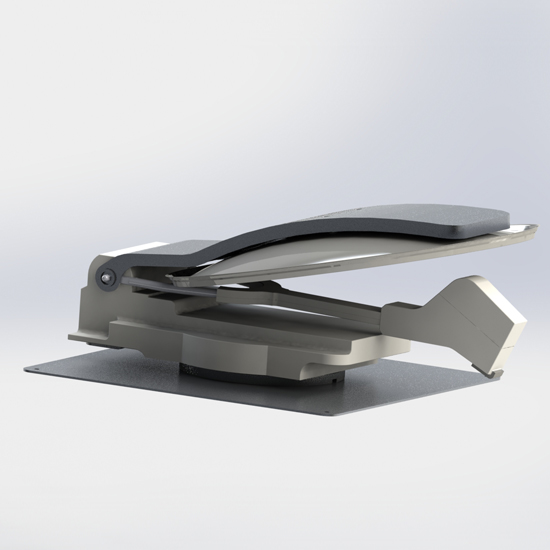

Antenna Stowed DimensionsLength: 242,3 cm Width: 180,3 cm Height: 47,0 cm
Weight80kg - without integration
IntegrationFeed boom Mounted60kg
Positioner Mounted80kg
RainOperational10 cm/h
Survival15 cm/h
Relative Humidity0 - 100%
Radial Ice (survival)24.5 mm
Corrosive AtmosphereAs encountered in coastal and/or industrial areas
TemperatureOperational—30°C+60°C
Survival—40°C+70°C
