Parameter

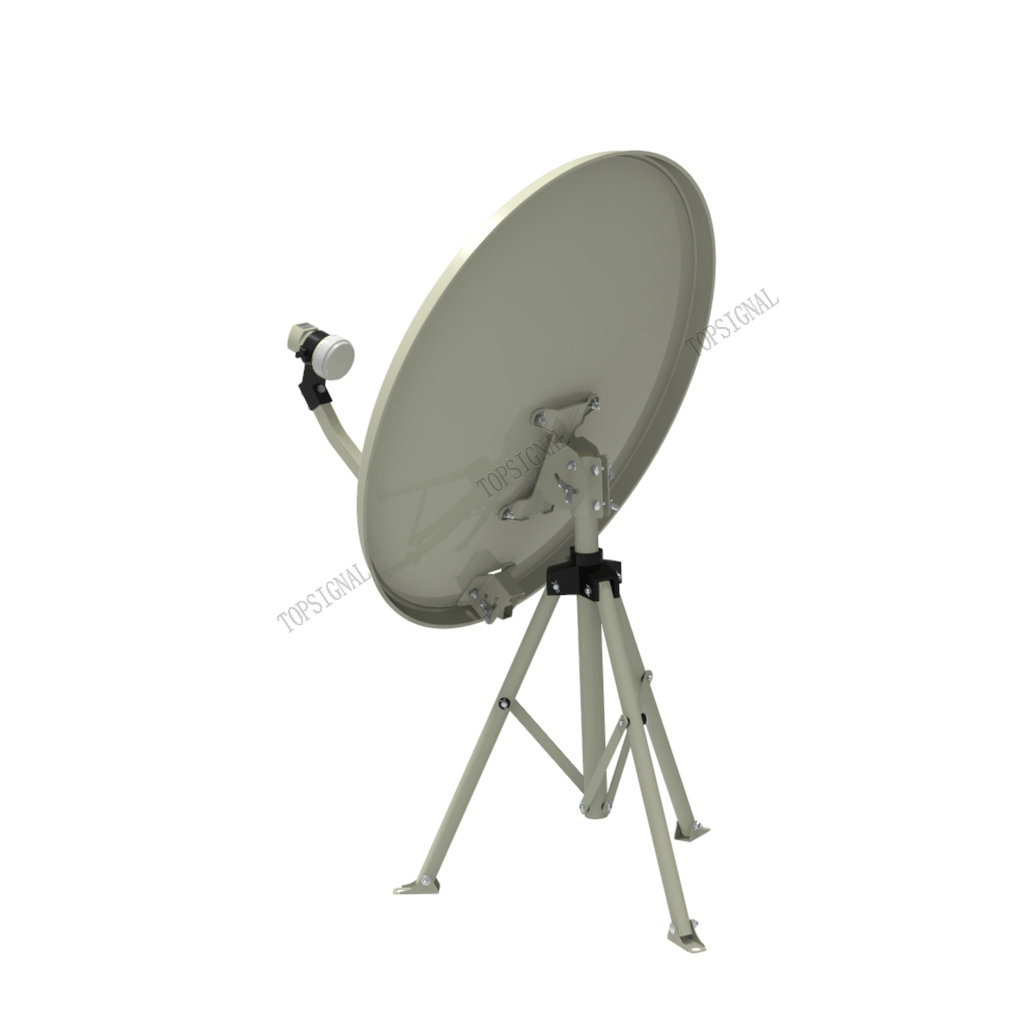

Model Name75CM portable, manual
Reflector
Reflector TypeOffset
Offset Angle24.66°
ApertureShort Axis750mm
DiameterLong Axis830mm
Efficiency60% Min.
Ku-Band Gain@ 12.5GHz37.6dB
F/D Ratio0.6
Focus Length438.3mm
MaterialCold Rolled or Galvanized steel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color

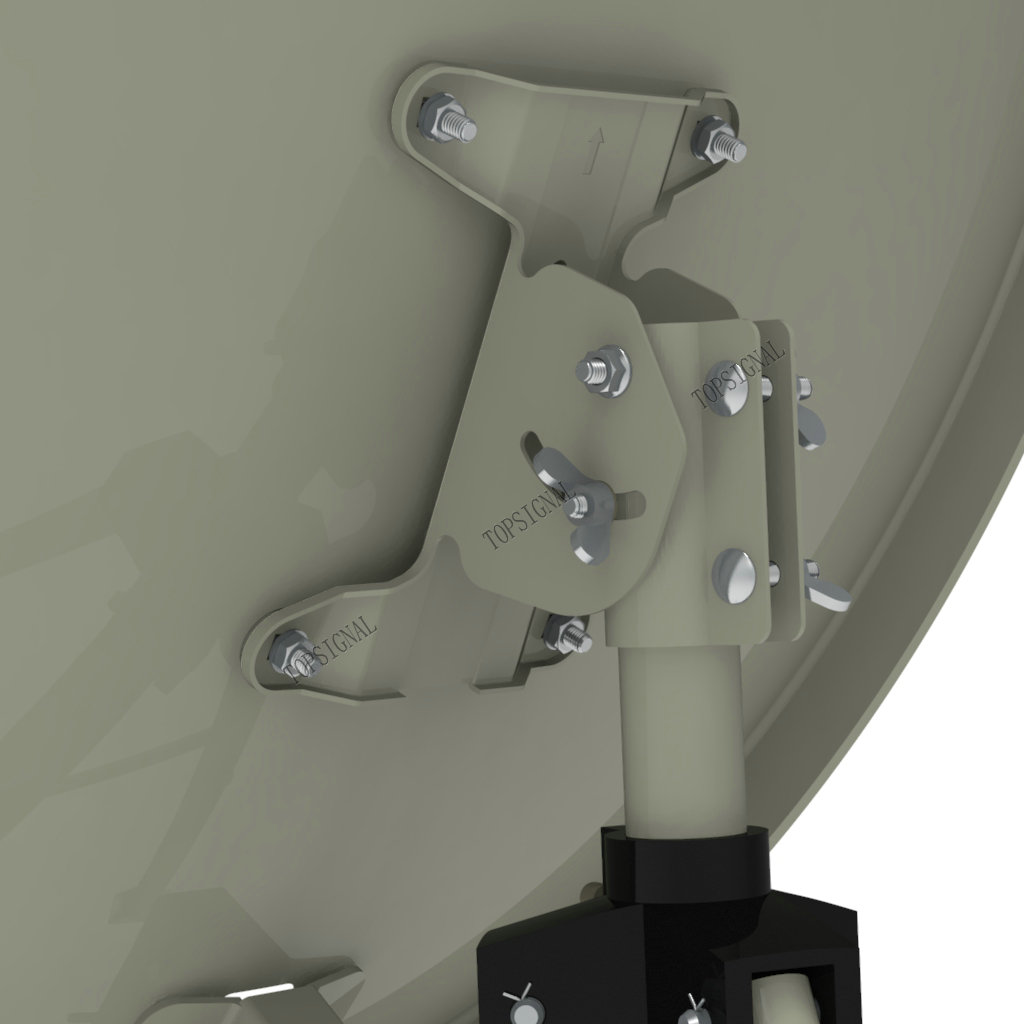

Mounting
Mounting TypePole / Wall Mounting
Adjustment TypeAZ/EL
MaterialSteel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color
Elevation0°-90°
Azimuth0°~360°
Pole Diameter42MM
Enviroment
Ambient Temperature-40℃~+60℃
Relative Humidity0~100%
