Parameter

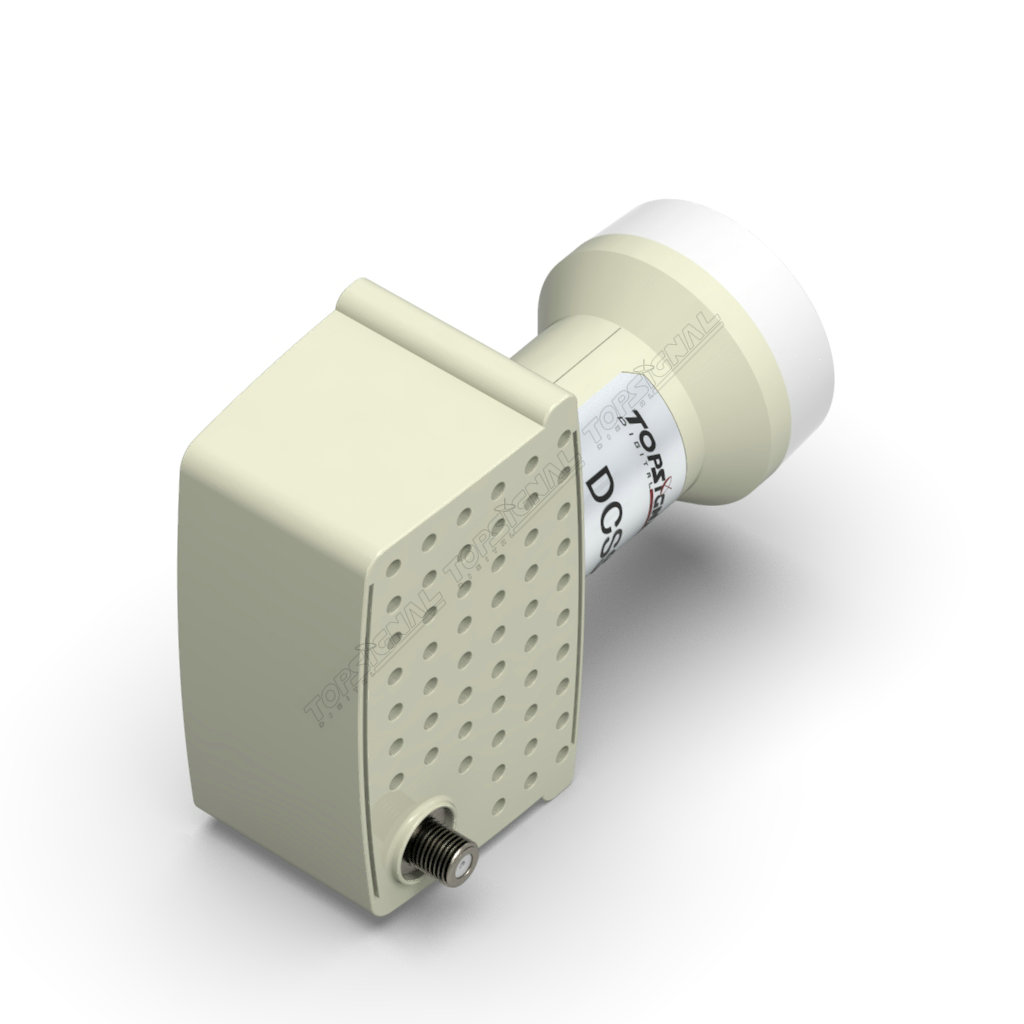

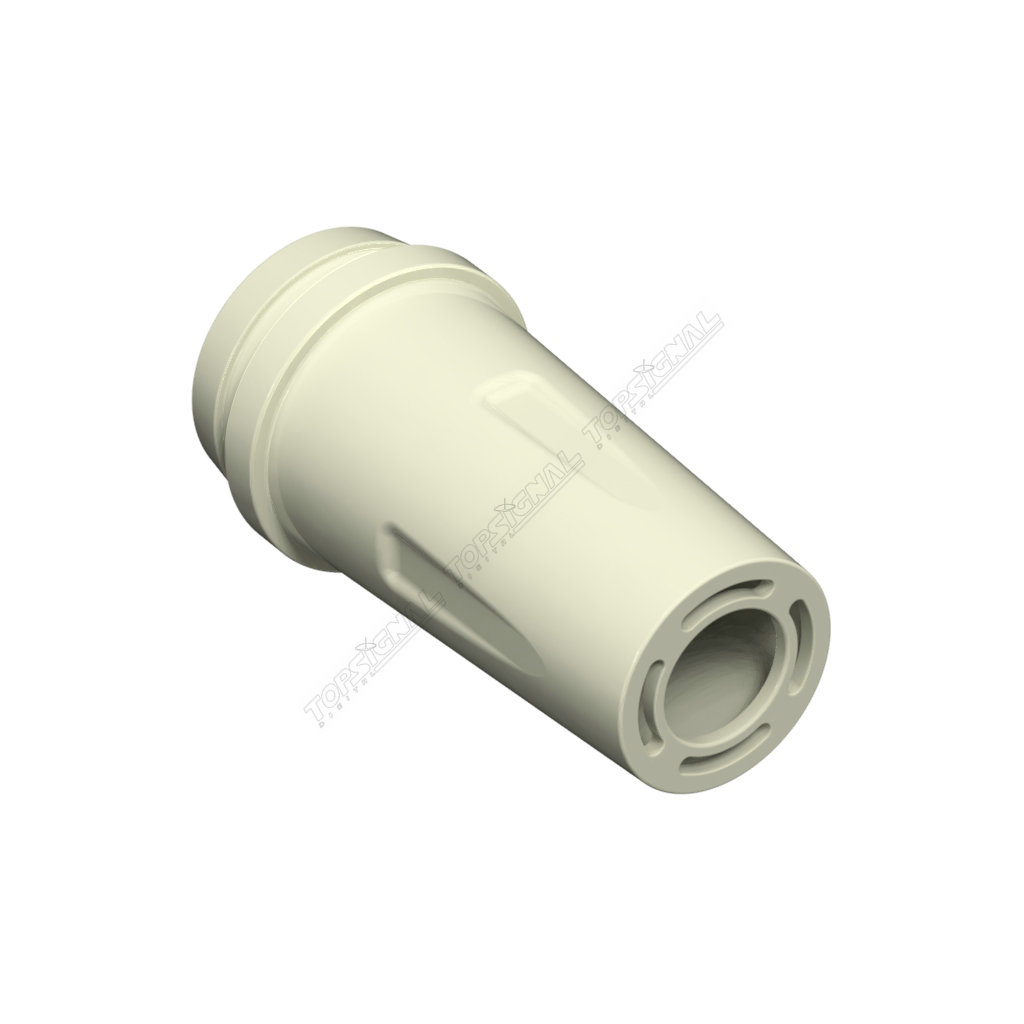

ModelDCSS
ITEMSPECIFICATION
RF Input Frequency Range10.7~12.75GHz
PolarizationVerical/Horizontal
LO Frequency10.4GHz
SCR input Frequency Range300-2350MHz
SCR input Gain Flatness8(max)dB
SCR input Conversion Gain42~60dB
IF Output Frequency Range950~2150MHz
IF Output Conversion Gain60~73dB
User band flatness (FTM Passband Ripple)±1.5dB
User band Output Level (in AGC)(FTM Min pout)一30[min.]dBm
Input Ch2Ch Isolation25dB
Noise Figure1.2[max.]dB
Image Rejection35[min.]dB
Cross-Pole Isolation20[min.]dB
LO Temperature Drift (-30~ +60deg.C)±3MHz
LO Phase Noise @ 1K Hz一50[min.]dBc/Hz
LO Phase Noise @ 10K Hz一80[min.]dBc/Hz
LO Phase Noise @ 100K Hz一100[min.]dBc/Hz
User Band Bandwidth30MHz
IF Output VSWR2.5[max.]]
SCR Control SignalsMode:Dynaminc(EN50494(UB1-UB-8)EN50607(UB1-UB32)
DC Power 32UBs @20.0v DC Power 32UBs @13.5v 300[max.]mA 500[max.]mA
Working Temperature一30 ~+60℃
IF Output Impedance(F-Type)75Ω
WeightTBDg
Ser Band Frequencies(can be changed according to customer requirements)UB1:1210MHzV/mA
UB17:1530MHz
UB2:1420MHz
UB18:1566MHz
UB3:1680MHz
UB19:1602MHz
UB4:2040MHz
UB20:1638MHz
UB5:984MHz
UB21:1716MHz
UB6:1020MHz
UB22:1752MHz
UB7:1056MHz
UB23:1788MHz
UB8:1092MHz
UB24:1824MHz
UB9:1128MHz
UB25:1860MHz
UB10:1164MHz
UB26:1896MHz
UB11:1256MHz
UB27:1932MHz
UB12:1292MHz
UB28:1968MHz
UB13:1328MHz
UB29:2004MHz
UB14:1364MHz
UB30:2076MHz
UB15:1458MHz
UB31:2112MHz
UB16:1494MHz
UB32:2148MHz
User Band Output Level (in AGC)一30[min.]dBm
