Parameter

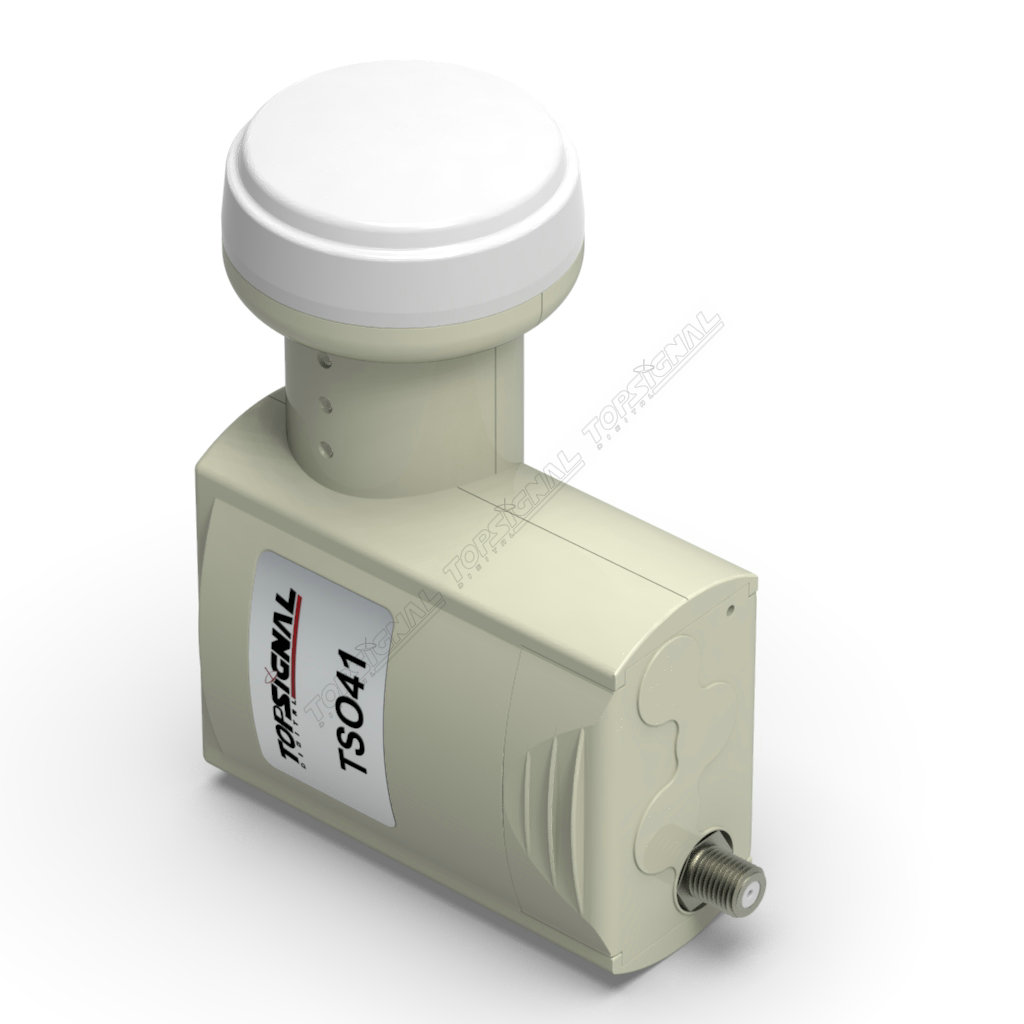

Model NameTSO41
ITEMSPECIFICATION
Horizontal I/P Frequency Range11.704~12.188GHz
O/P Frequency Range950~1434MHz
LO Frequency13.138GHz
Vertical I/P Frequency Range11.704~11.941GHz
O/P Frequency Range1494~1731MHz
LO Frequency 13.435GHz
Vertical I/P Frequency Range11.0105~11.0675GHz
O/P Frequency Range1792.5~1849.5MHz
LO Frequency12.86GHz
Horizontal I/P Frequency Range10.9625~11.1995GHz
O/P Frequency Range1912.5~2149.5MHz
LO Frequency 13.112GHz
Noise Figure0.8(max)dB
LO Initial Accuracy@25℃±1.0MHz
LO Temperature Drift@-20~+70℃±3.0MHz
LO Phase Noise @ 1K Hz-50dBc / Hz
LO Phase Noise @ 10K Hz-75dBc / Hz
LO Phase Noise @ 100K Hz-95dBc / Hz
Conversion Gain65 (TYP)dB
Gain Flatness4dB
Delta Between Gain4dB
Gain Variation±0.75dB/27 MHz
RF Image Rejection40[min.]dB
IF Band Rejection20[min.]dB
In-Band Spurious-50dBm
O/P 1 dB Compression Point0.0[min.]dBm
Isolation Between Polarization20 [typ.]dB
O/P VSWR2.0:1
DC Power200(max)mA
Working Temperature- 20 ~ + 70℃
Output Impedance75Ω (F-Type)
