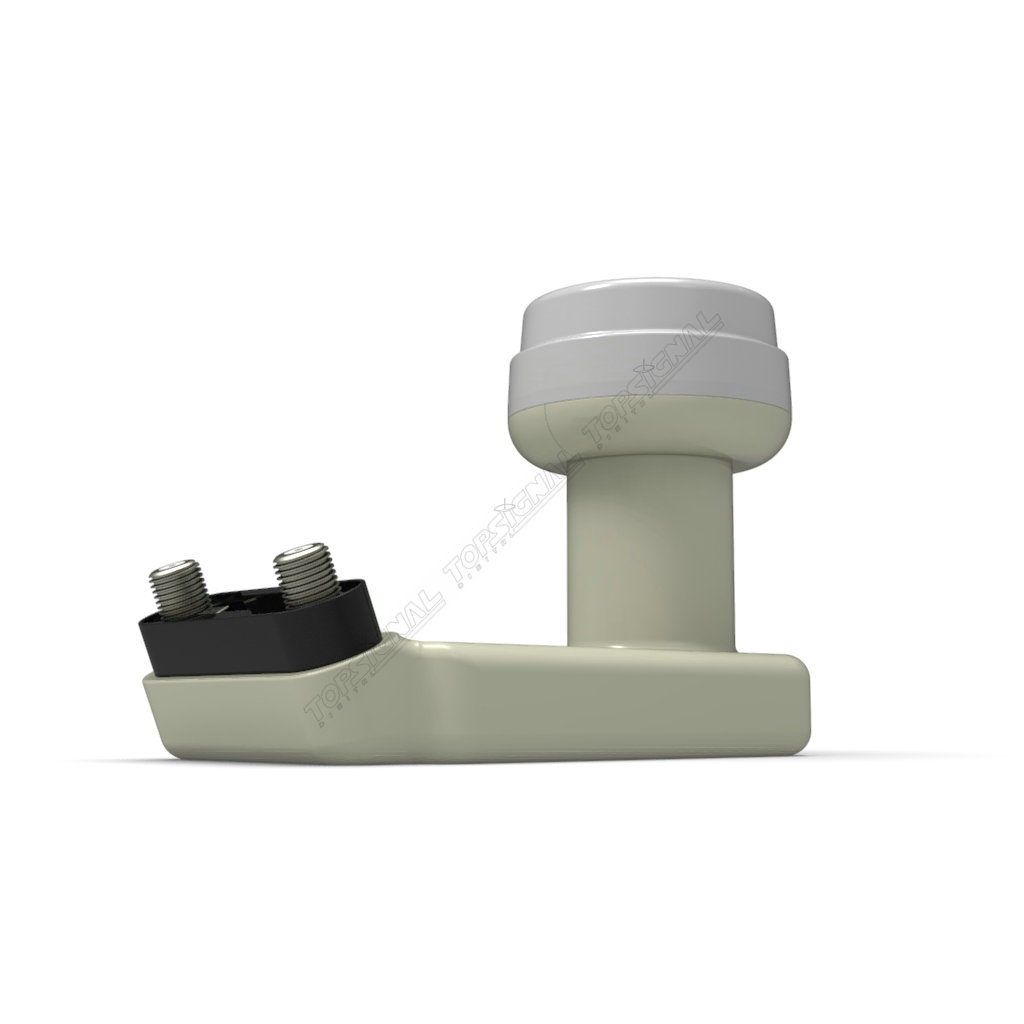

| Model | TSO71 |
| ITEM | SPECIFICATION |
| Polarization | RHCP and LHCP |
| RF high band I/P Frequency Range | 11.45~ 12.2GHz |
| IF low band O/P Frequency Range | 950 ~ 1700MHz |
| LO1 Frequency | 10.5GHz |
| RF high band I/P Frequency Range | 10.95 ~ 11.2GHz |
| IF low band O/P Frequency Range | 1900~ 2150MHz |
| LO2 Frequency | 13.1GHz |
| Noise Figure | 0.8（max）dB |
| LO Initial Accuracy@25℃ | ±1MHz |
| LO Temperature Drift@-20~+70℃ | ±2.0MHz |
| LO Phase Noise @ 1K Hz,@ 10K Hz,@ 100K Hz | -50 ,-80,-95dBc / Hz |
| Gain Flatness over any 24MHz band(pk-pk) | 1（max）dB |
| over any 36MHz band(pk-pk) | 1.5（max）dB |
| over any 250MHz band(pk-pk) | 2.5（max）dBc / Hz |
| over any 250MHz band(pk-pk) | 6（max）dBc / Hz |
| Conversion Gain Range,absolute | 52-65dB |
| Output Return Loss | 10(min)dB |
| System Cross-Pol Isolation within circle of 56 deg(60cm) and 0.38(90cm) deg about boresight,Dish Antenna+LNBF | 20(min)dB |
| Image Rejection | 40 (min)dB |
| O/P 1 dB Compression Point | 5 (min); ﹤3 if gain﹤60dB dBm |
| Polarization Control Voltage Range to LNBF | |
| Left-hand Circular Polarization (over Temperature) | 14.5 ~ 21V |
| Right-hand Circular Polarization (over Temperature) | 9.5 ~ 14V |
| Polarization Control Current,one IRD | ≦220mA |
| Worst case component junction temperature | 125(max)℃ |
| EMC 2.6GHz Spurious | -60(min)dBm |
| EMC 54~806MHz Spurious | -64(min)dBm |
| Working Temperature | - 20 ~ + 70℃ |
