Parameter

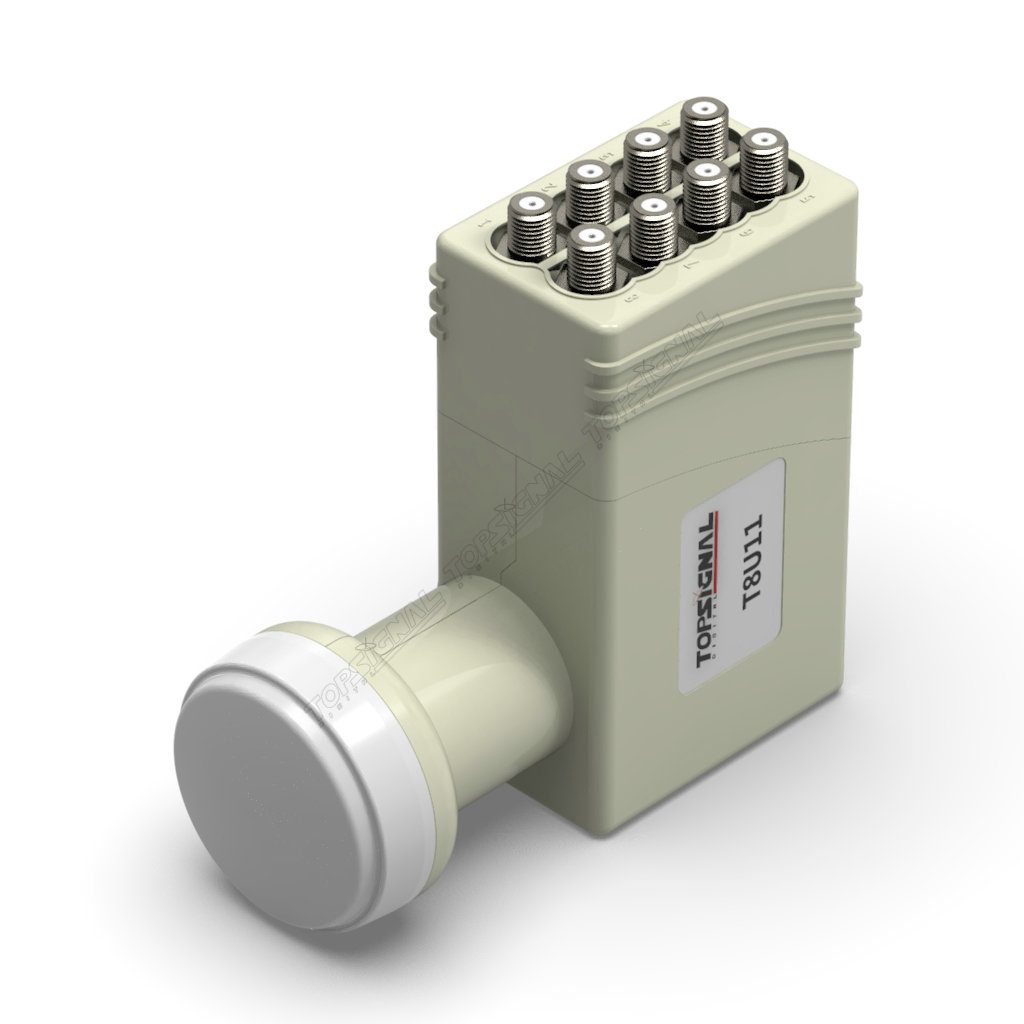

Model NameT8U11
ITEMSPECIFICATION
Low Band I/P Frequency Range10.7 ~ 11.7GHz
O/P Frequency Range950 ~ 1950MHz
LO Frequency 9.75GHz
Noise Figure1.0(max)dB
High Band I/P Frequency Range11.7 ~ 12.75GHz
O/P Frequency Range1100 ~ 2150MHz
LO Frequency10.6GHz
Noise Figure1.0(max)dB
LO Initial Accuracy±1.0MHz
LO Temperature Drift±1MHz
LO Phase Noise @ 1K Hz-50(Max)dBc / Hz
LO Phase Noise @ 10K Hz-75(Max)dBc / Hz
LO Phase Noise @ 100K Hz-90(Max)dBc / Hz
Conversion Gain58-68dB
Gain Variation8dB/36MHz
Radiated Interference(1.7GHz)-46(max)dBm
Image Rejection40 (min)dB
O/P 1 dB Compression Point0 (min)dBm
Crosstalk Isolation20 (min)dB
Control Signals Ca V11.0 ~ 14.5 V
Control Signals Cb H16.0 ~ 20.0 V
Control Signals Cc22± 4KHZ
O/P Supurious-45(max)dBc
O/P VSWR2.0:1
DC Power12V~20V/mA
Output impedance75Ω
Operationg Temperature- 20 ~ + 70℃
