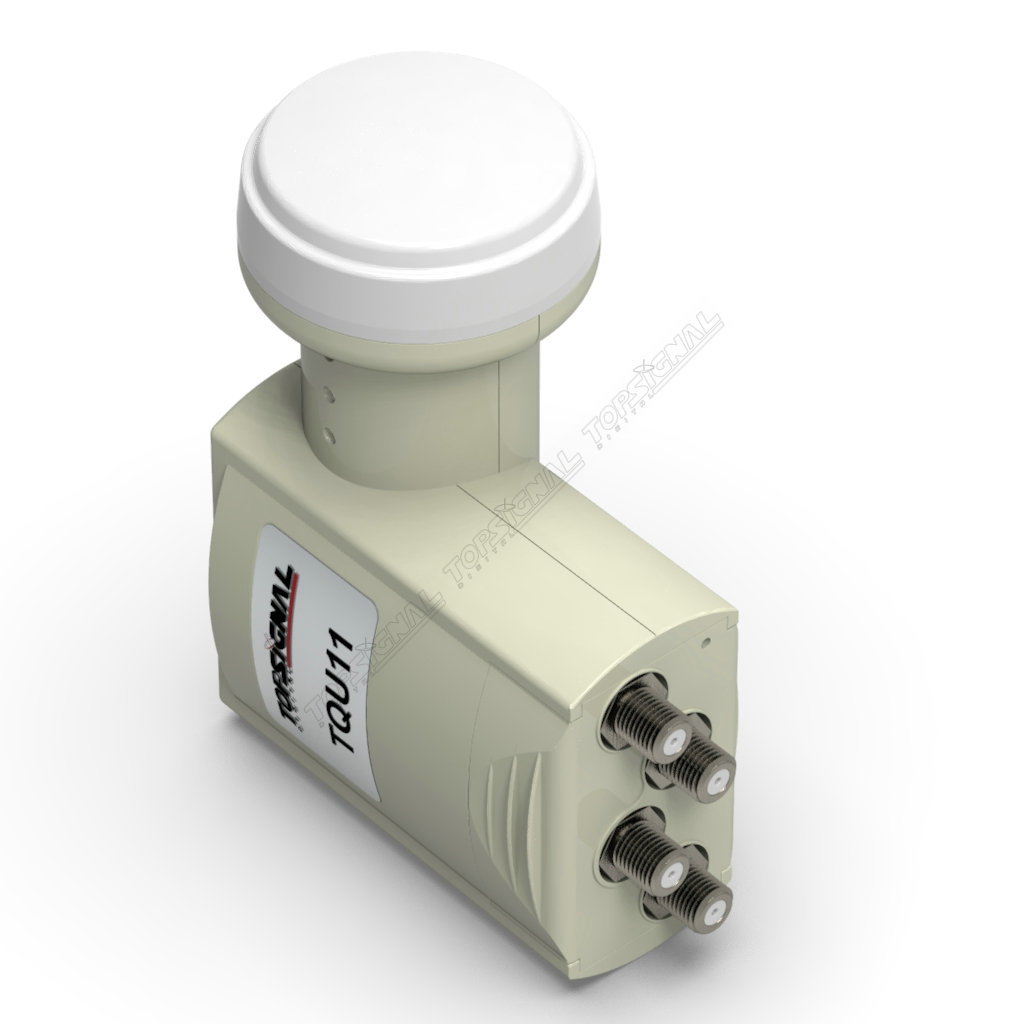

Model NameTQU11
 Low BandHigh Band
I/P Frequency Range [V]&[H]10.7-11.7 GHz11.7-12.75 GHz
O/P Frequency Range [V]&[H]950-1950 MHz1100-2150 MHz
LO frequency9.75 GHz10.6 GHz
Noise Figure≤1dB
Reflector TypeOffset
F/D LNBF(Offset dish)0.6Ratio
Conversion Gain56-65 dB
LO Frequency stability±1.0 MHz (initial accuracy@25℃) ±2.5MHz (@-10℃ to +60℃)MHz
LO phase noise-50@1kHz -75@10kHz -90@100kHz dBc/Hz
Radiated Interference(1.7GHz)≤ -50 dBm
Crosstalk Isolation20 (min) dB
O/P 1 dB Compression Point0 (min)dBm
3rd order intercept point10dBm (min)
Supply voltage10-20 V
Current consumption150 mA ( max )
Control Signals Ca V11.0 ~ 14.5 V
Control Signals Cb H16.0 ~ 20.0 V
Control Signals Cc22±4 kHz
Output impedance75 Ohms
Output connectorF-female
Operating Temperature-10℃ to +60℃
Storage Temperature-20℃ to +70℃
Feed Mounting LNBF40±1mm
LNBF Plastic Cover----
