Parameter

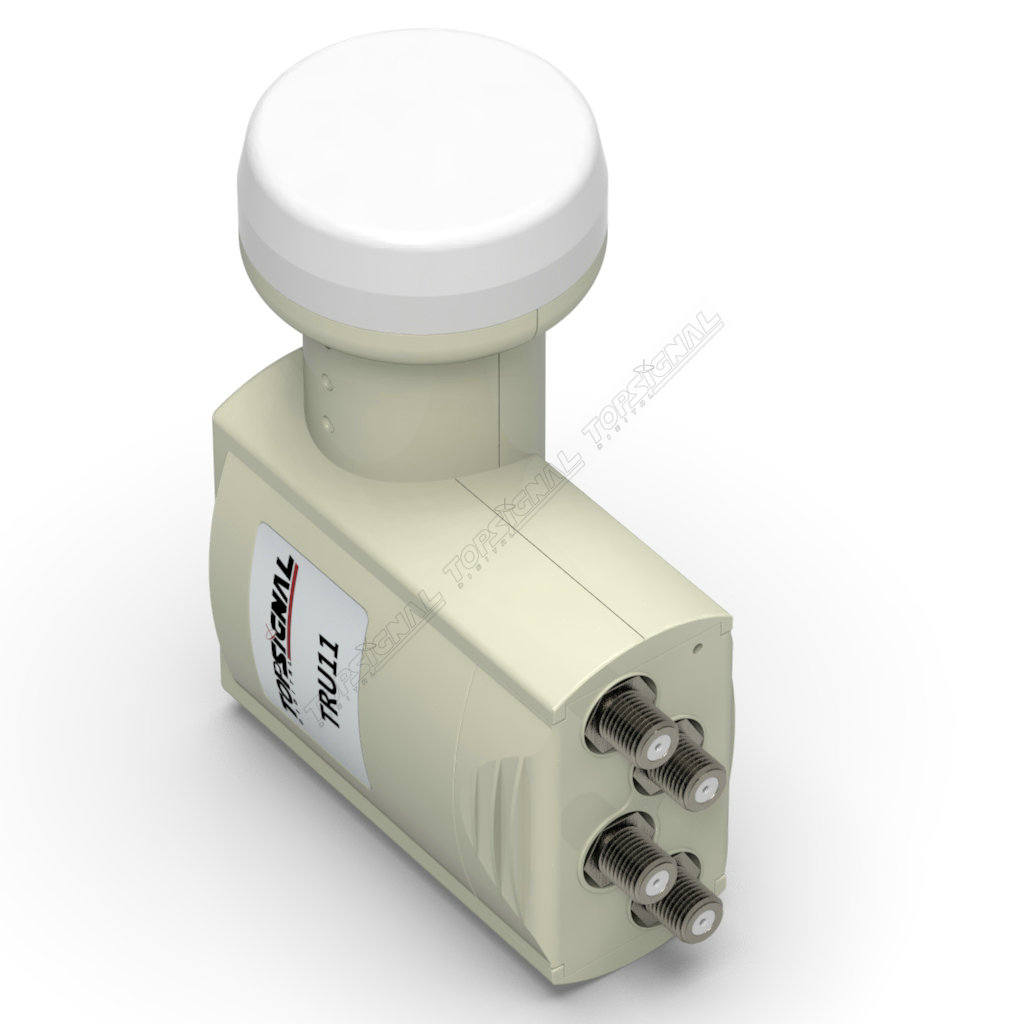

Model NameTRU11
 Low BandHigh Band
I/P Frequency Range [V]&[H]10.7-11.7 GHz11.7-12.75 GHz
O/P Frequency Range [V]&[H]950-1950 MHz1100-2150 MHz
LO frequency9.75 GHz10.6 GHz
Conversion Gain56-65 dB
LO Frequency stability±1.0 MHz (initial accuracy@25℃) ±3MHz (@-20℃ to +70℃)MHz
LO phase noise-50@1kHz -75@10kHz -90@100kHz dBc/Hz
Radiated Interference(1.7GHz)≤ -50 dBm
Crosstalk Isolation20 (min) dB
O/P 1 dB Compression Point0 (min)dBm
Current consumption150 mA ( max )
Control Signals Ca V11.0 ~ 14.5 V
Control Signals Cb H16.0 ~ 20.0 V
Control Signals Cc22±4 kHz
Output impedance75 Ohms
Working Temperature-20℃ to +70℃
Gain Flathess±3(max)dB
Gain Variation6dB
Image Rejection-40(min)dB
OUTPUT VSWR2.5:1
O/P Supurious-45(max)dBc
