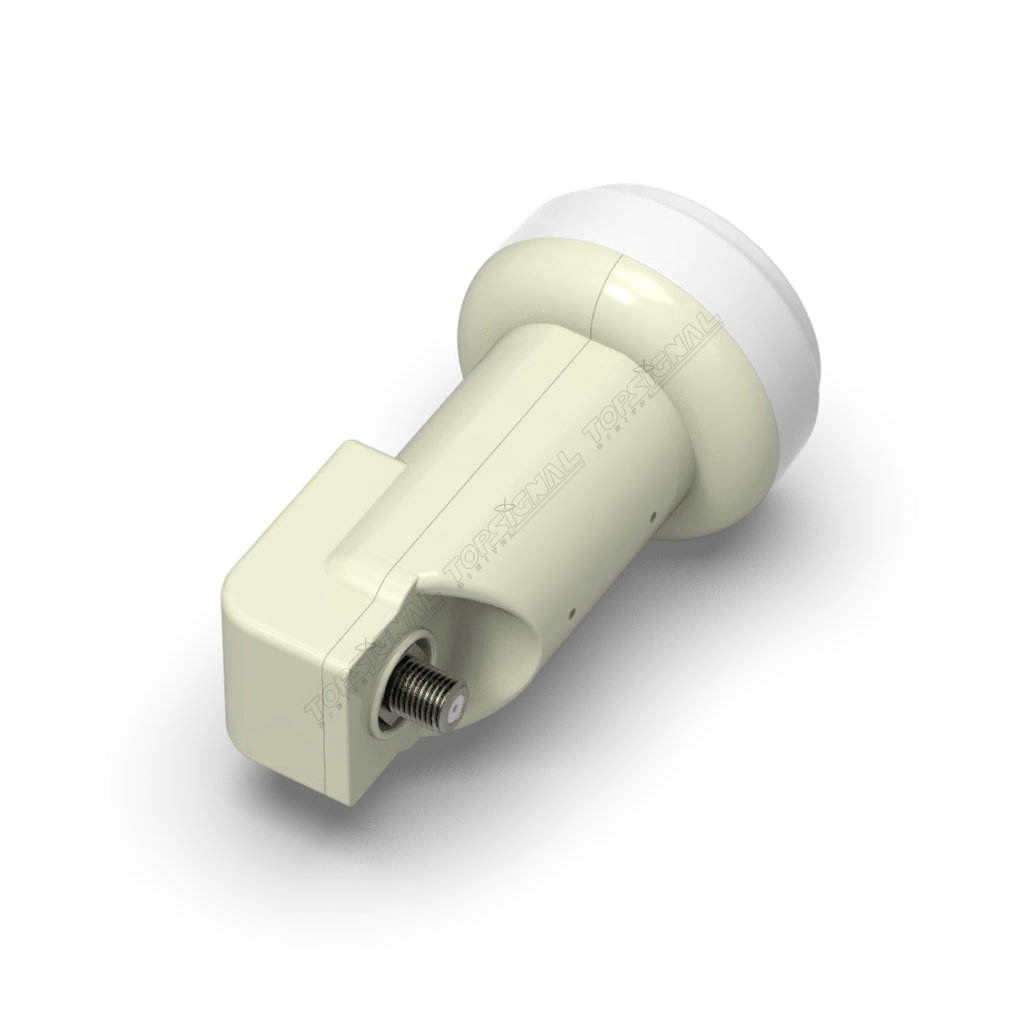

| Model Name | TSU11 |
| ITEM | SPECIFICATION |
| Low Band I/P Frequency Range | 10.7 ~ 11.7GHz |
| O/P Frequency Range | 950 ~ 1950MHz |
| LO Frequency | 9.75GHz |
| Noise Figure | 1.0（max）dB |
| Control Signals | Ca or Cb |
| High Band I/P Frequency Range | 11.7 ~ 12.75GHz |
| O/P Frequency Range | 1100 ~ 2150MHz |
| LO Frequency | 10.6GHz |
| Noise Figure | 1.0（max）dB |
| LO Initial Accuracy | ±1MHz |
| LO Temperature Drift | ±2.5MHz |
| LO Phase Noise @ 1K Hz | 50dBc / Hz |
| LO Phase Noise @ 10K Hz | 75dBc / Hz |
| LO Phase Noise @ 100K Hz | 90dBc / Hz |
| Conversion Gain | 58-65dB |
| Gain Variation | 0.75dB/36MHz |
| Image Rejection | 40 (min)dB |
| O/P 1 dB Compression Point | 0 (min)dBm |
| Crosstalk Isolation | 20 (min)dB |
| Control Signals Ca V | 11.0 ~ 14.5 V |
| Control Signals Cb H | 16.0 ~ 20.0 V |
| Control Signals Cc | 22± 4KHZ |
| O/P Supurious | -45(max)dBc |
| O/P VSWR | 2.2:1 |
| DC Power | 12V~20V @80mA[ max ]V/mA |
| Working Temperature | - 10 ~ + 60℃ |
