Parameter

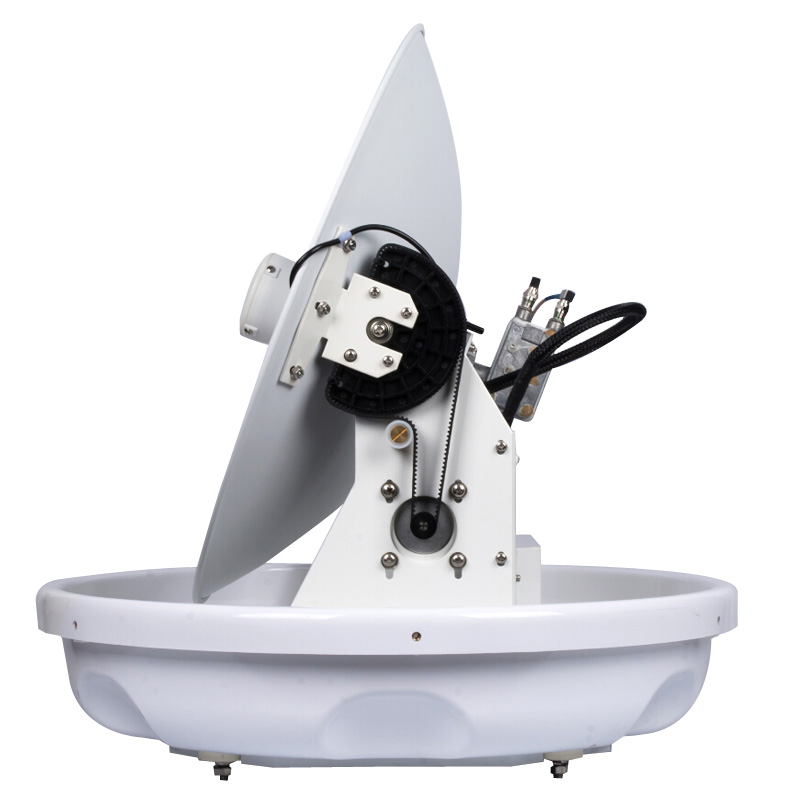

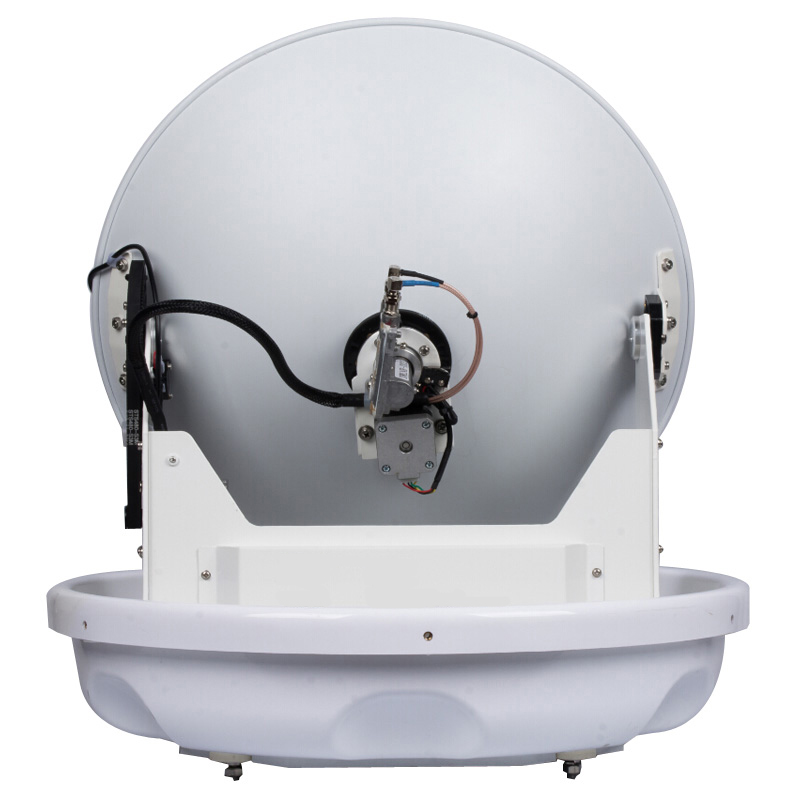

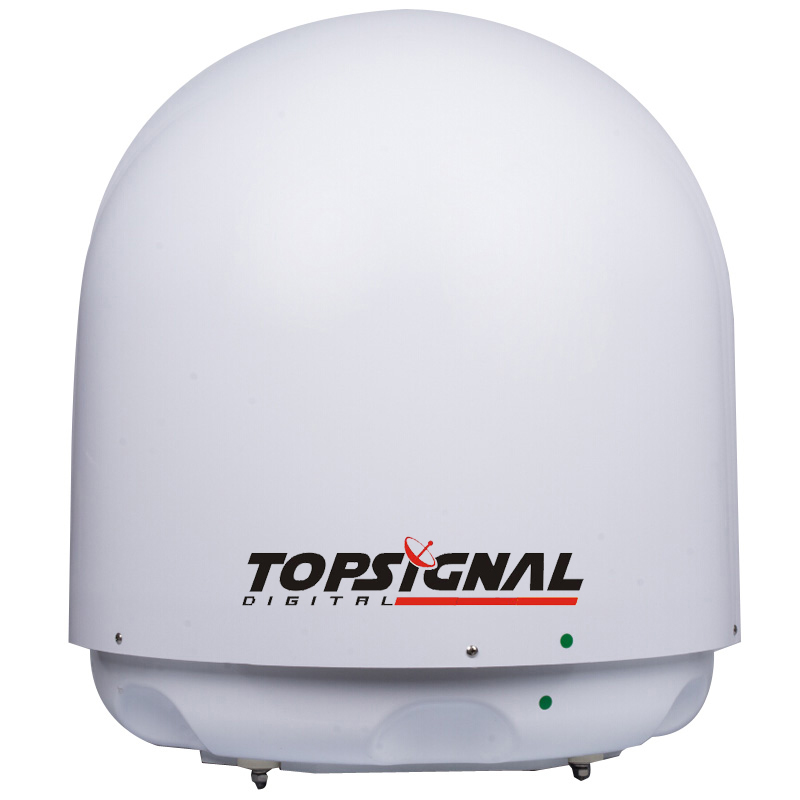

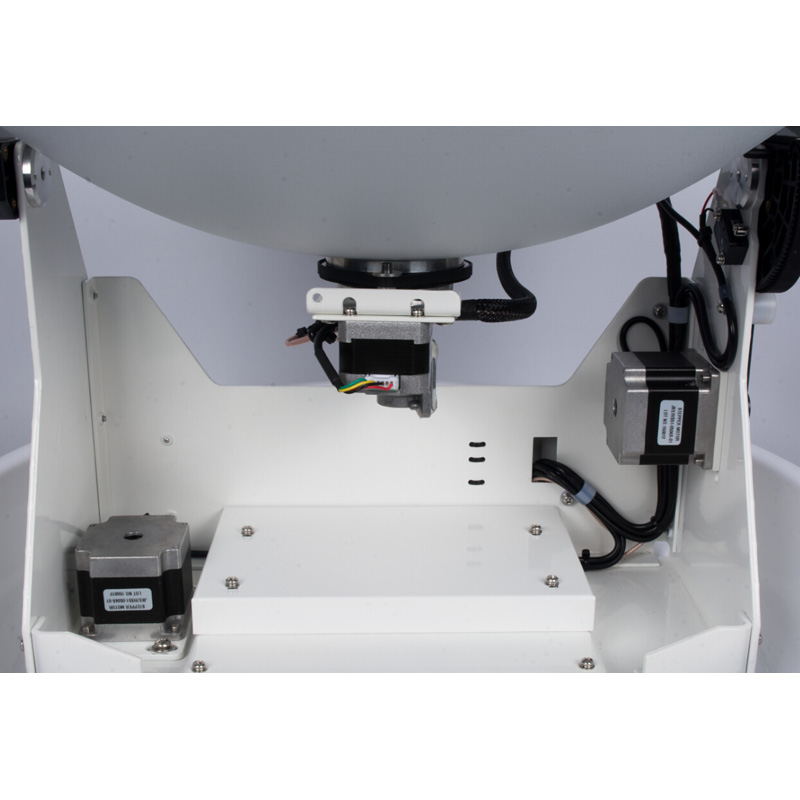

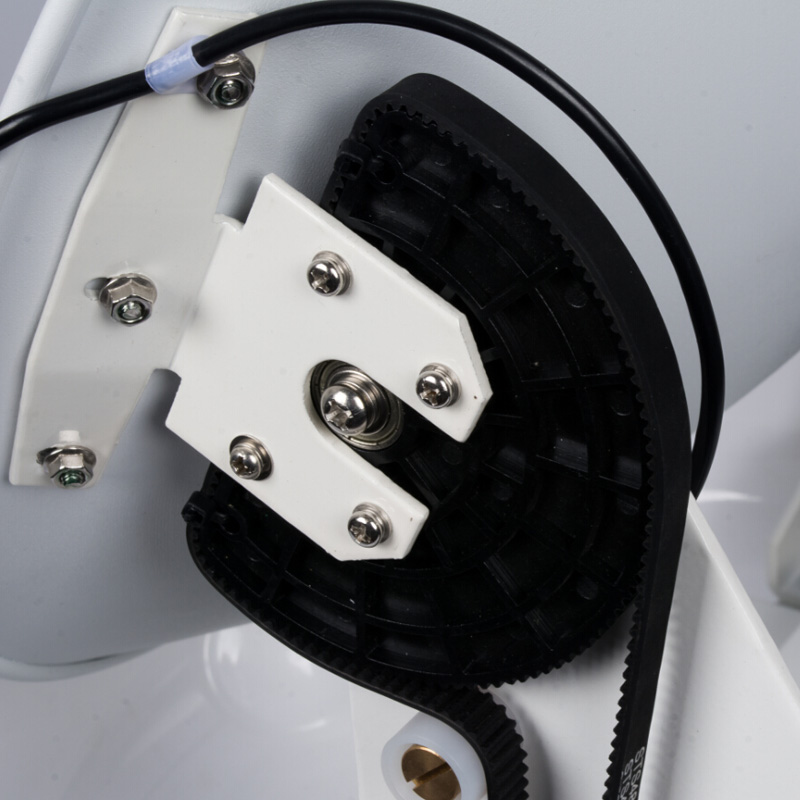

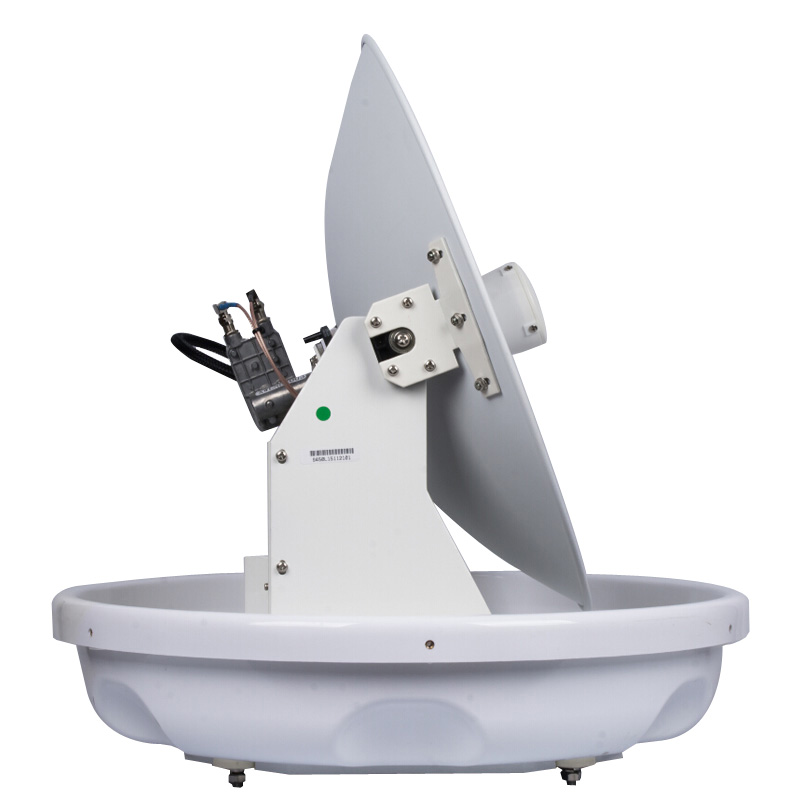

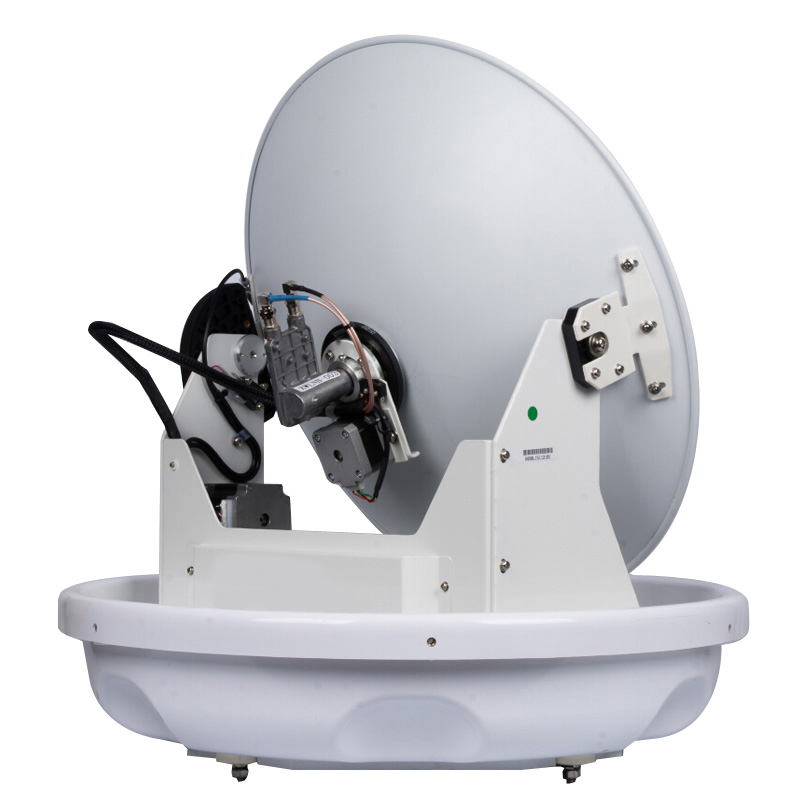

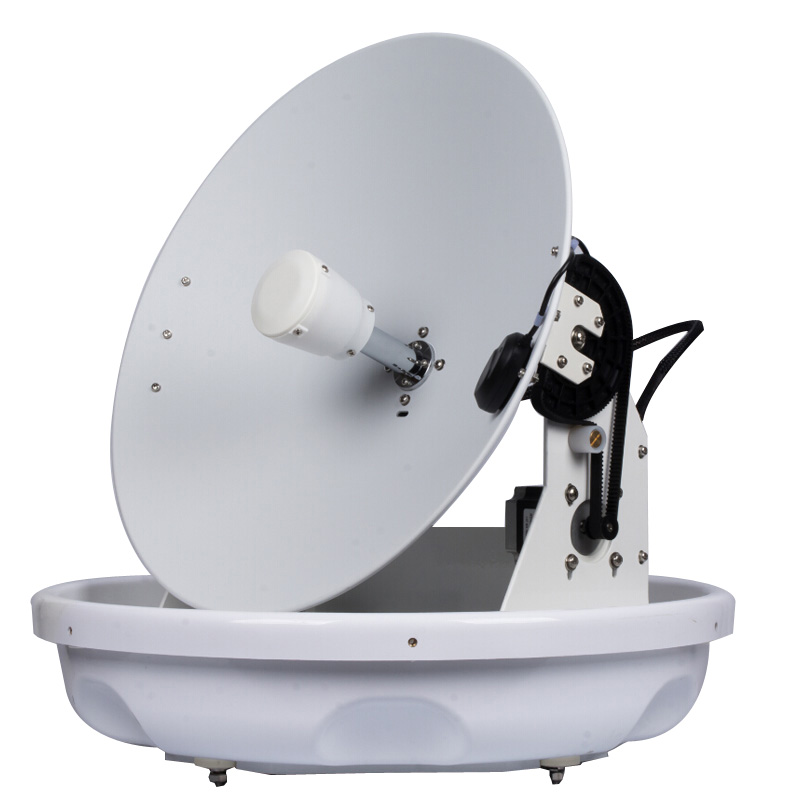

Model NameAFS 450
Size518*518*565(mm)
Weight10kg
Aperture Diameter450mm
Signal Gain33.8dBi
Minimum EIRP49dBw
Operating Platform2/3-Axis
Frequency RangeKu Band
PolarizationLinear/Circular
Azimuth680°
Elevation+0°~ +90°
Tracking RateMax 60°/s
Protection LevelOutdoor Unit:IPX6
Indoor Unit:IP22
Ambient Temperature-20°C ~ +70°C
Relative HumidityRH<95%
DC supplyDC15-30V
Power≤35W
