Parameter

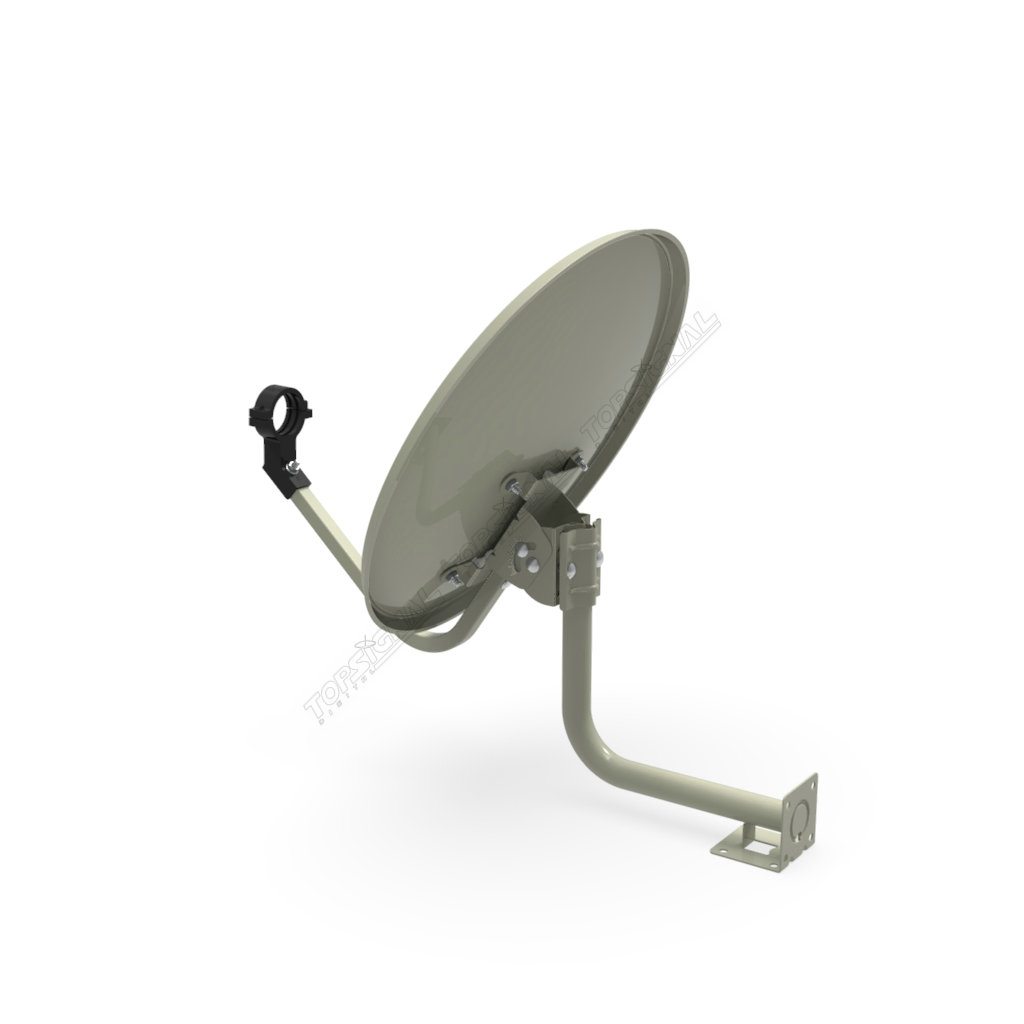

Model NameTOD35L
Reflector
Reflector TypeOffset
Offset Angle24.62°
ApertureShort Axis350mm
DiameterLong Axis389.5mm
Efficiency65% Min.
Ku-Band Gain@ 12.75GHz30.8 dB
F/D Ratio0.6
Focus Length210mm
MaterialCold Rolled or Galvanized steel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color

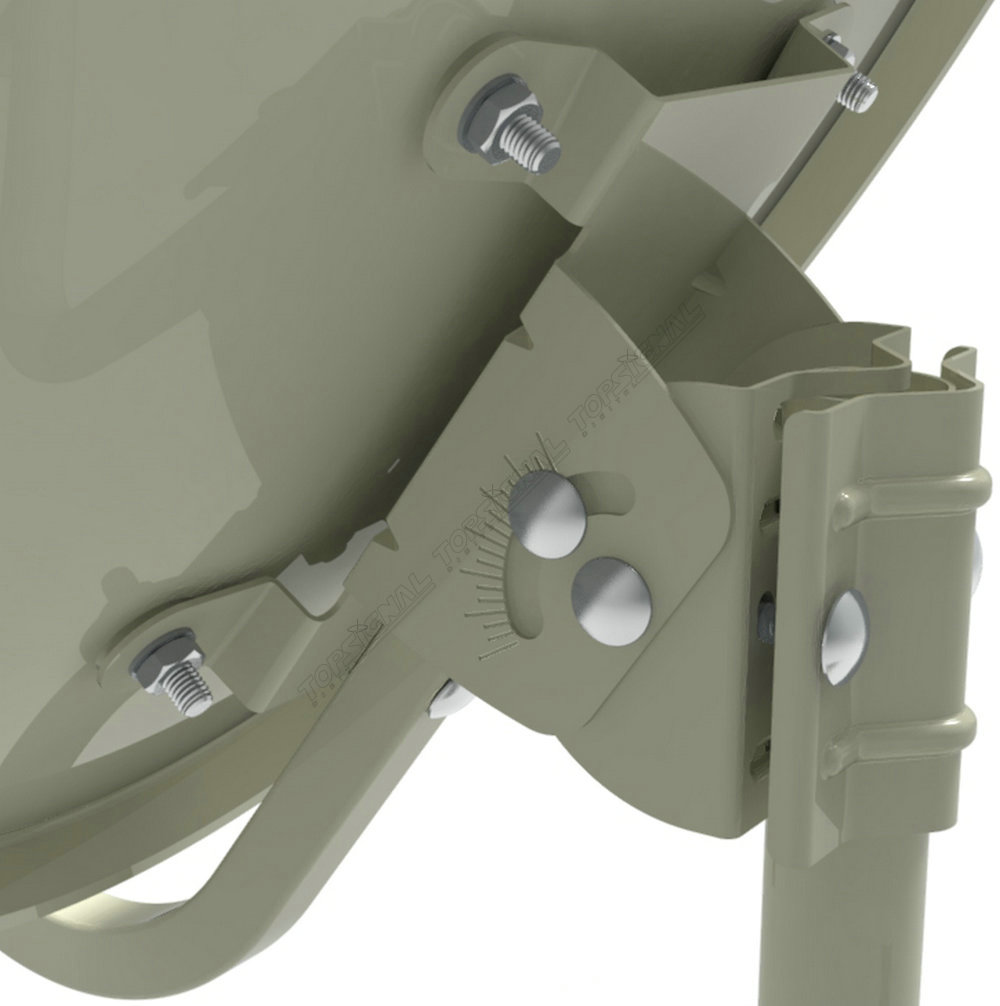

Mounting
Mounting TypePole / Wall Mounting
Adjustment TypeAZ/EL
MaterialSteel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color
Elevation 10°-90°
Azimuth 0°~360°
Enviroment
Ambient Temperature-40℃~+60℃
Relative Humidity0~100%
