Parameter

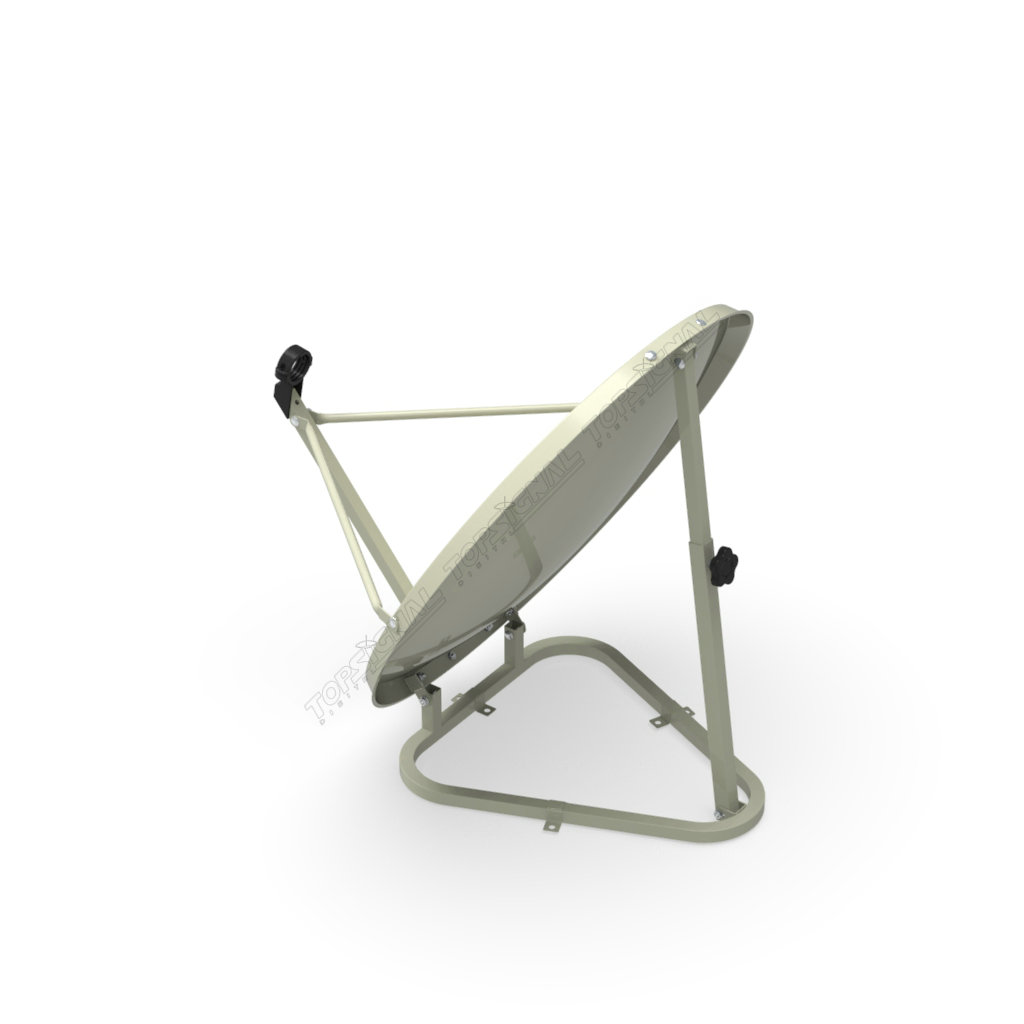

Model NameTOD45-B009
Reflector
Reflector TypeOffset
Offset Angle25.84°
ApertureShort Axis450mm
DiameterLong Axis500mm
Efficiency63% Min.
Ku-Band Gain@ 12.75GHz33.3dB
F/D Ratio0.62
Focus Length280mm
MaterialCold Rolled or Galvanized steel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color

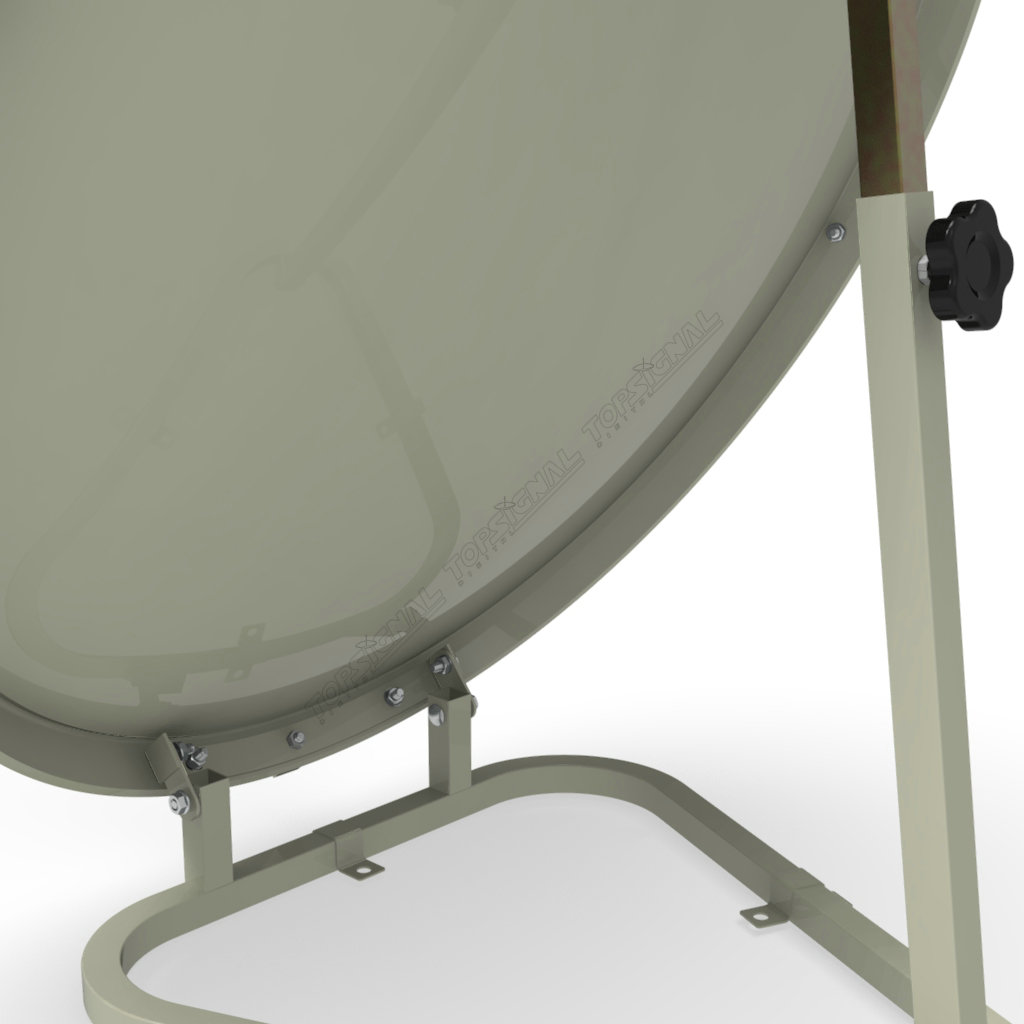

Mounting
Mounting TypeTriangle Mounting
MaterialSteel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color
Elevation 25-90°
Azimuth 0°~360°
Enviroment
Ambient Temperature-40℃~+60℃
Relative Humidity0~100%
