Parameter

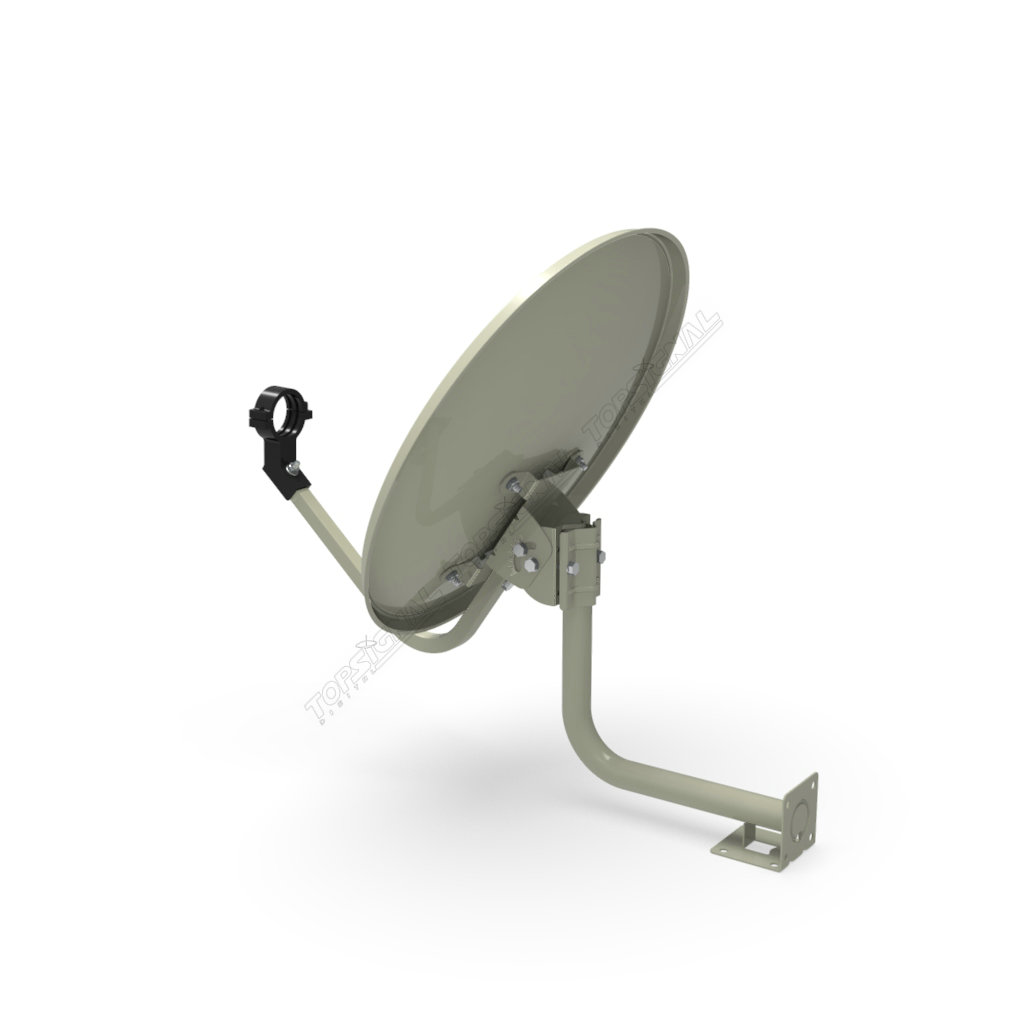

Model NameTOD45-B042-Z819
Reflector
Reflector TypeOffset
Offset Angle24°
ApertureShort Axis450mm
DiameterLong Axis495mm
Efficiency75% Min.
Ku-Band Gain@ 12.75GHz33dB
F/D Ratio0.6
Focus Length270mm
MaterialCold Rolled or Galvanized steel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color

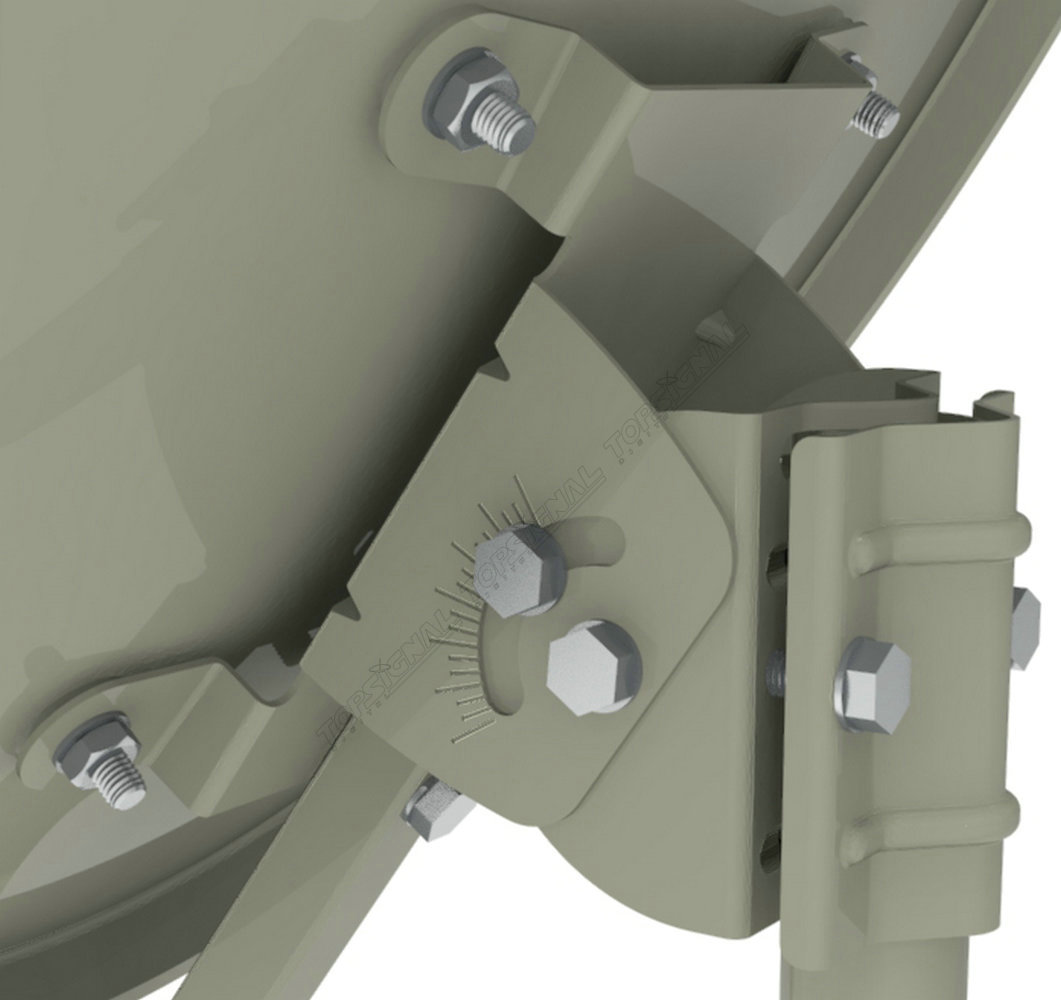

Mounting
Mounting TypePole / Wall Mounting
Adjustment TypeAZ/EL
MaterialSteel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color
Elevation 10°-90°
Azimuth 0°~360°
Enviroment
Ambient Temperature-40℃~+60℃
Relative Humidity0~100%
