Parameter

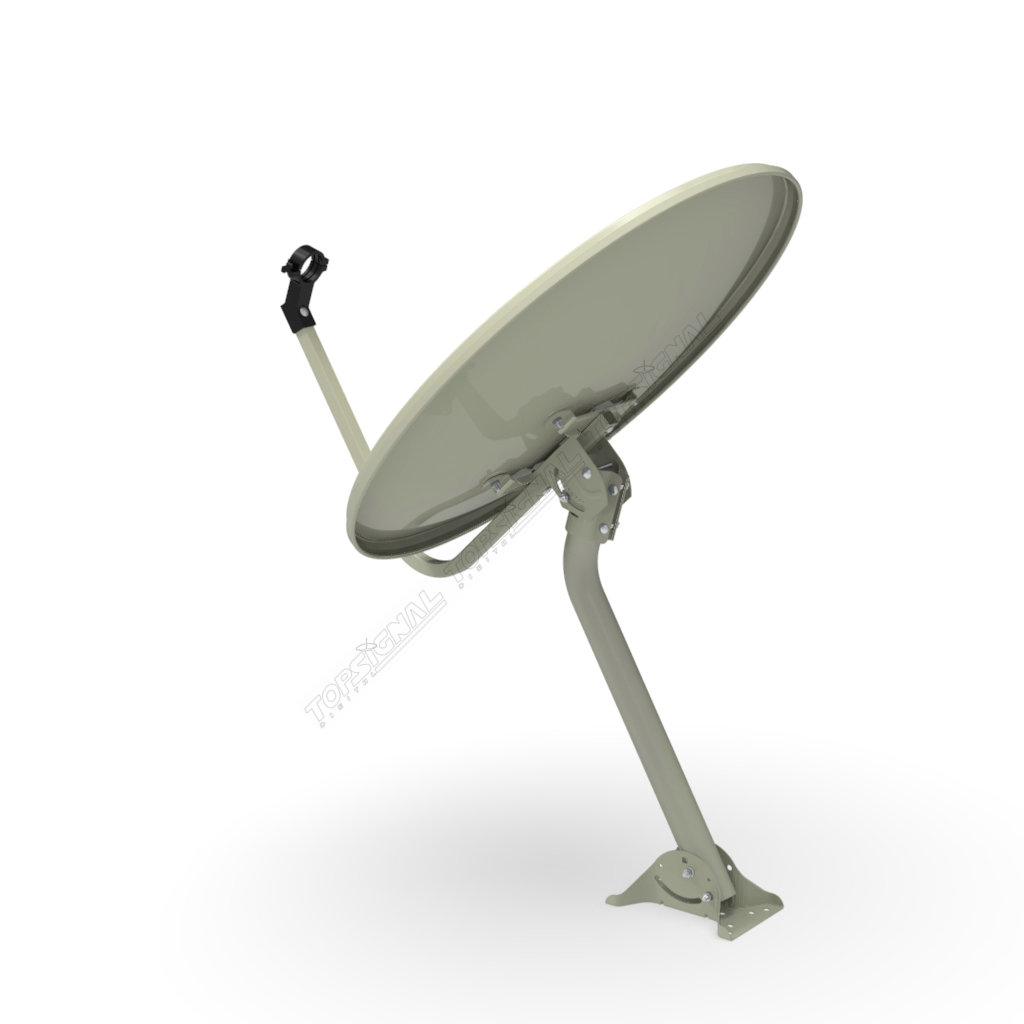

Model NameTOD60-B015-Z804
Reflector
Reflector TypeOffset
Offset Angle23.16°
ApertureShort Axis605mm
DiameterLong Axis658mm
Efficiency65% Min.
Ku-Band Gain@ 12.75GHz36.2dB
F/D Ratio0.5844
Focus Length353.562mm
MaterialGalvanized steel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color

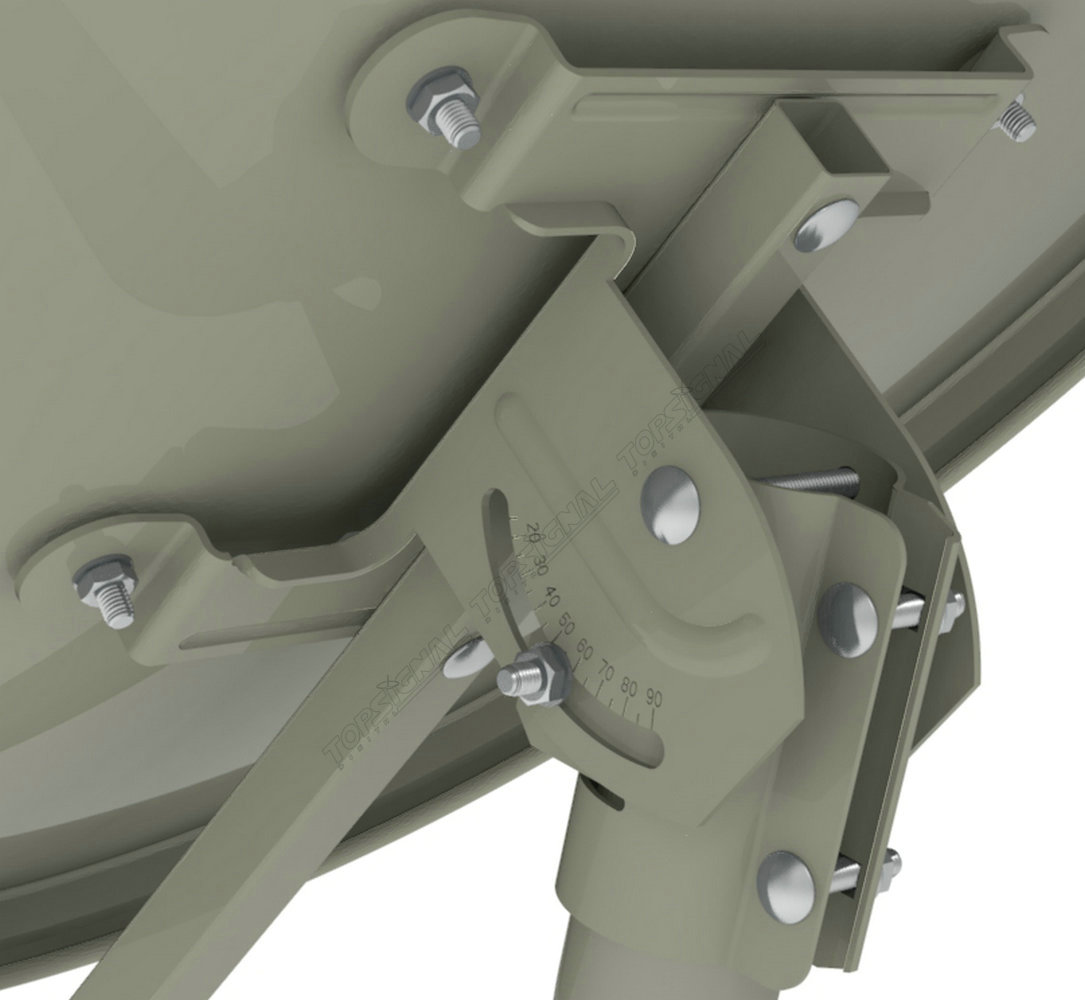

Mounting
Mounting TypePole / Wall Mounting
Adjustment TypeAZ/EL
MaterialGalvanized steel
FinishPolyester Powder Coating
ColorGrey 7c
Elevation 20°~90°
Azimuth 0°~360°
Pole Diameter42MM
Enviroment
Ambient Temperature-40℃~+60℃
Relative Humidity0~100%
Operational wind 70km/h
Survival wind90km/h
