Parameter

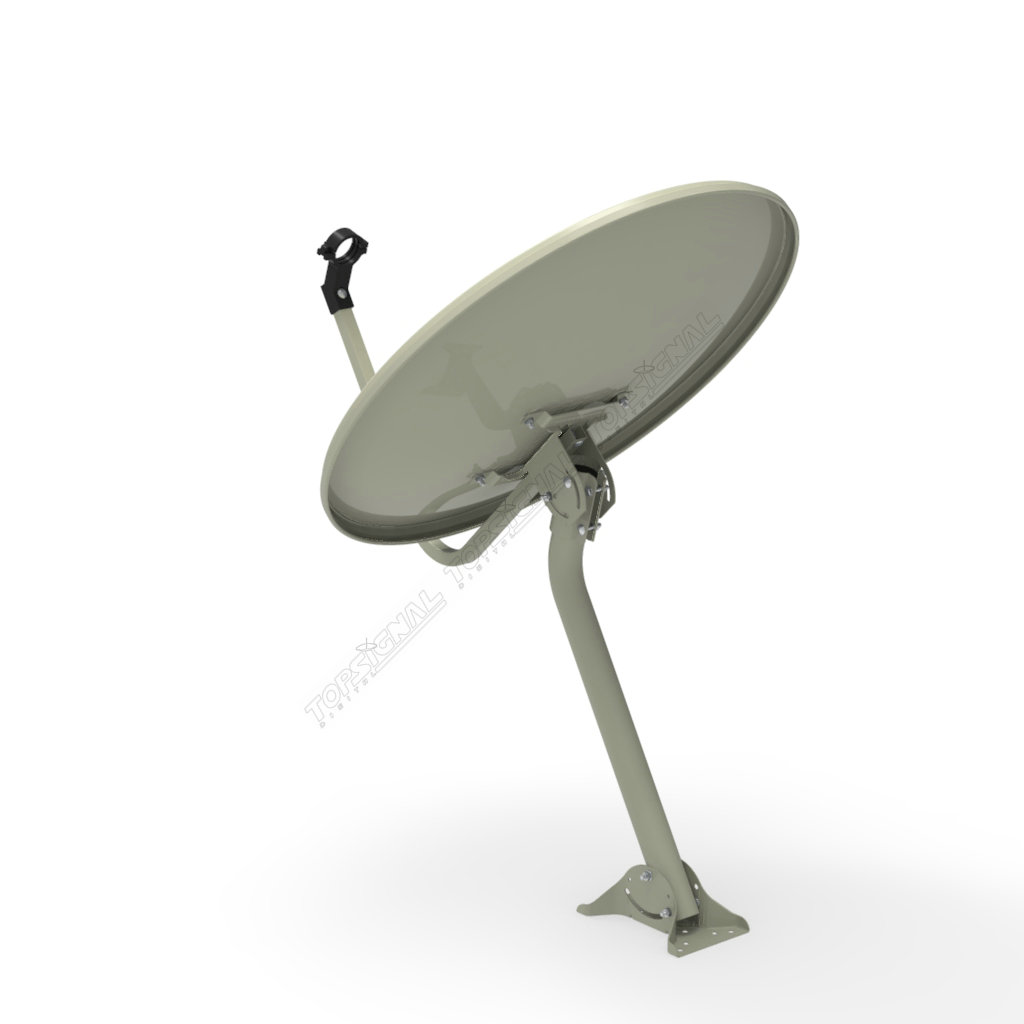

Model NameTOD60-B044-Z804
Reflector
Reflector TypeOffset
Offset Angle25.65°
ApertureShort Axis610mm
DiameterLong Axis671mm
Efficiency70% Min.
Ku-Band Gain@ 12.75GHz36.5dB
F/D Ratio0.6
Focus Length336mm
MaterialCold Rolled or Galvanized steel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color

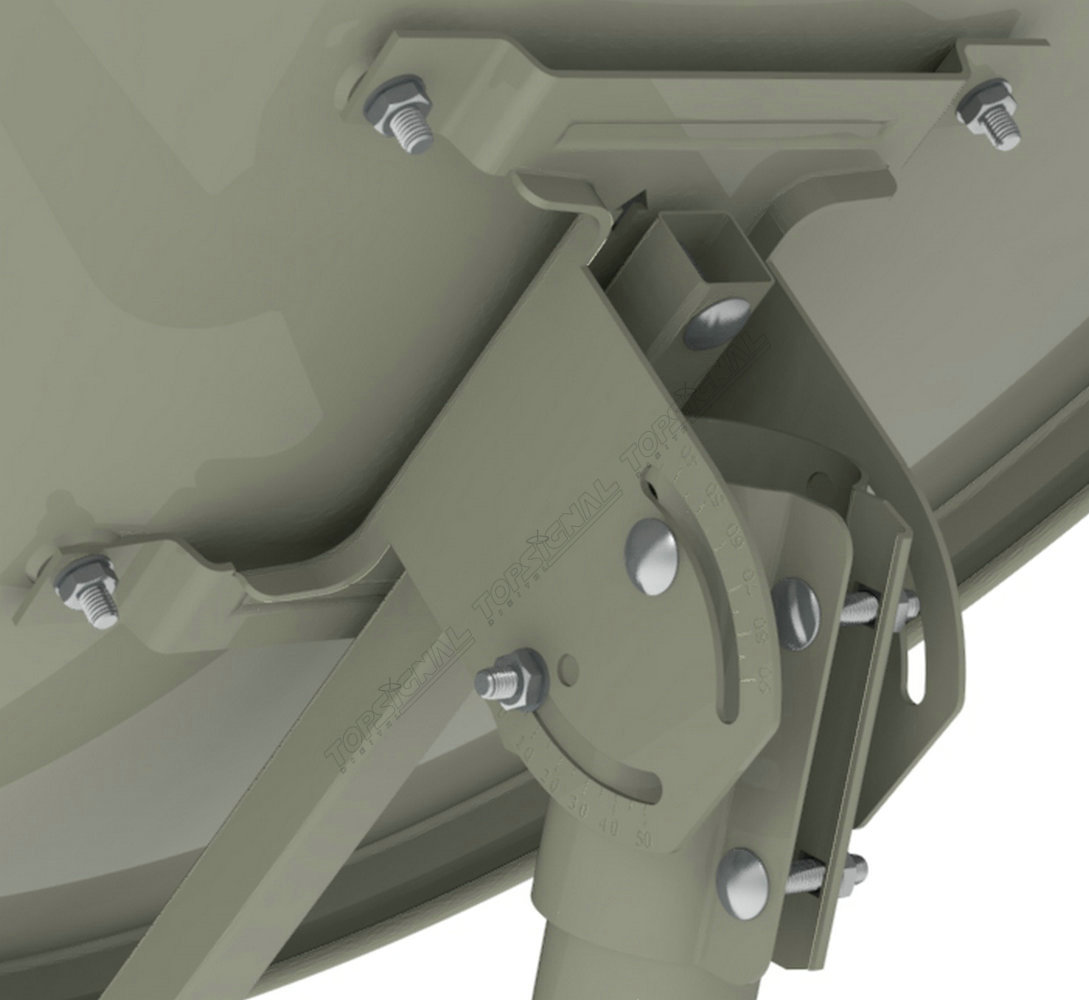

Mounting
Mounting TypePole / Wall Mounting
Adjustment TypeAZ/EL
MaterialSteel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color
Elevation 0°-90°
Azimuth 0°~360°
Pole Diameter42MM
Enviroment
Ambient Temperature-40℃~+60℃
Relative Humidity0~100%
