Parameter

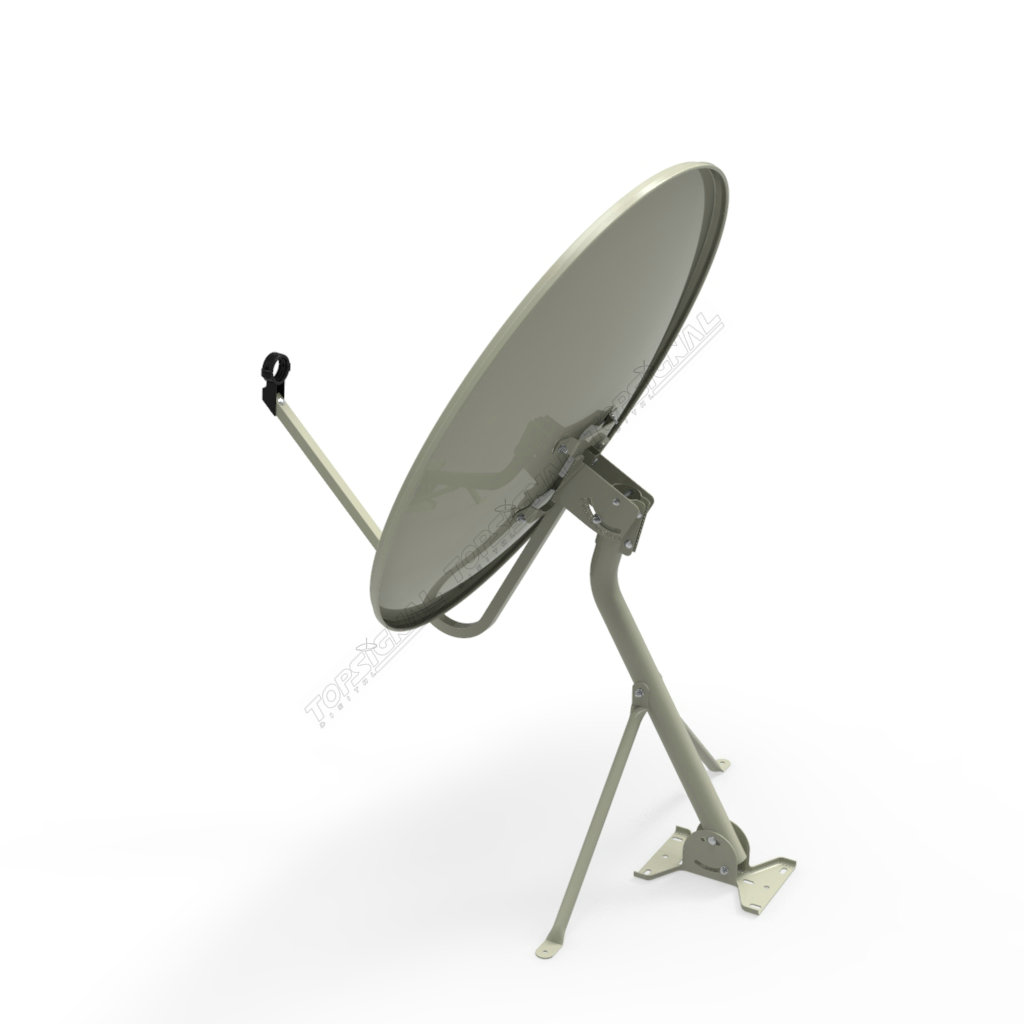

Model NameTOD75-B036-Z828
Reflector
Reflector TypeOffset
Offset Angle23.161°
ApertureShort Axis750mm
DiameterLong Axis817.5mm
Efficiency70% Min.
Ku-Band Gain@ 12.75GHz36.2dB
F/D Ratio0.5844
Focus Length428.3mm
MaterialCold Rolled or Galvanized steel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color

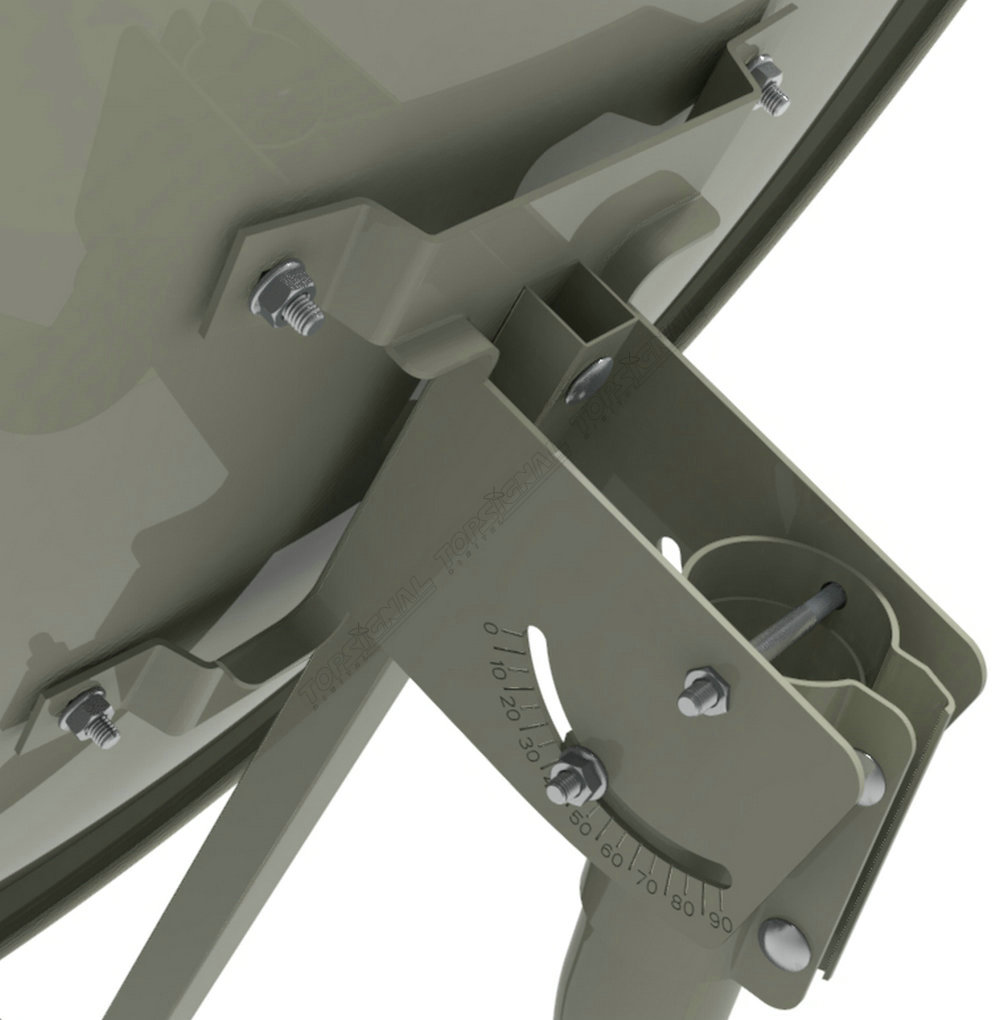

Mounting
Mounting TypePole / Wall Mounting
Adjustment TypeAZ/EL
MaterialSteel
FinishPolyester Powder Coating
ColorGrey/Light grey/Customer needed color
Elevation 0°~90°
Azimuth 0°~360°
Pole Diameter42MM
Enviroment
Ambient Temperature-40℃~+60℃
Relative Humidity0~100%
